Security

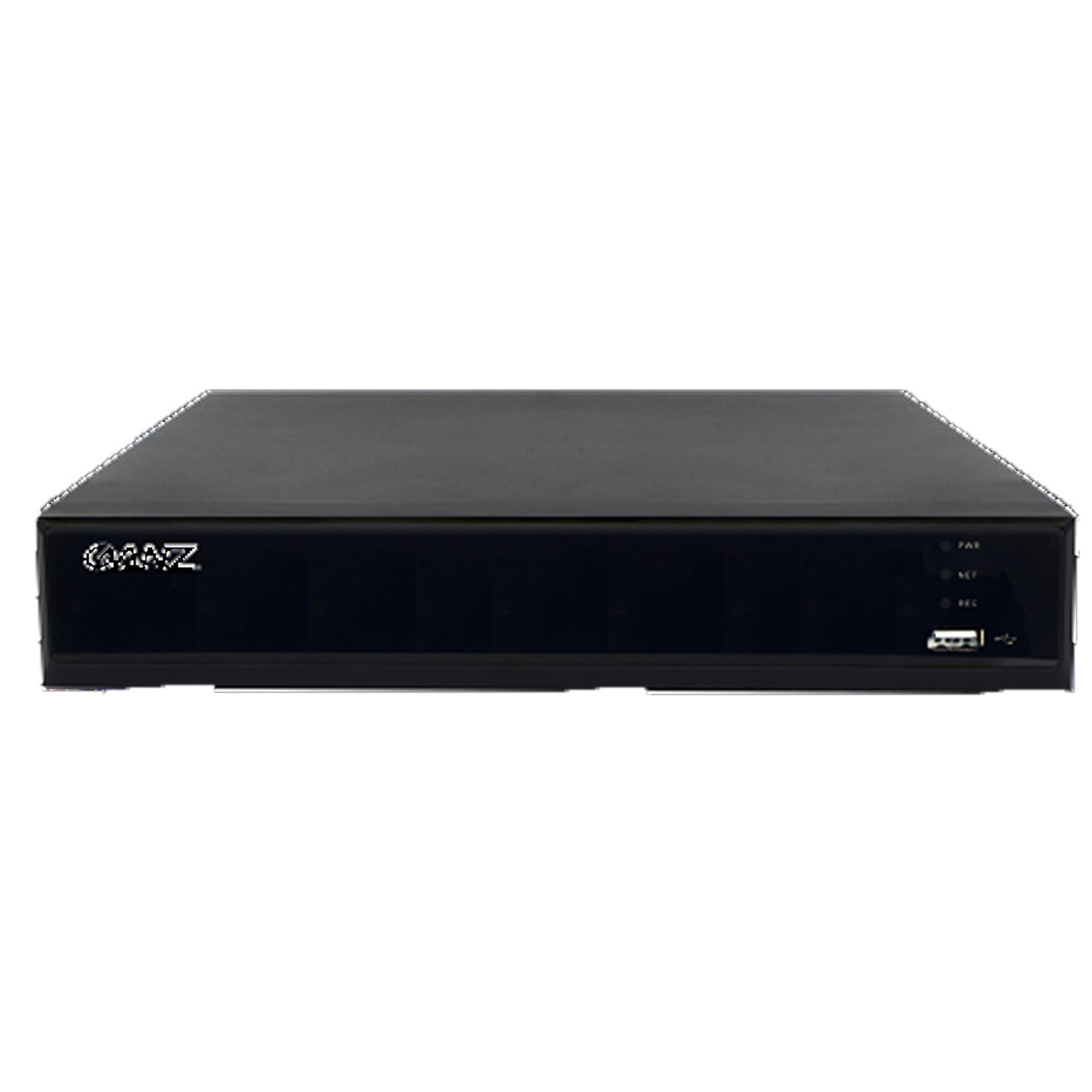

NR8-3804H1-4P

Key Features
• Up to 4ch IP cameras access
• Up to 8MP resolution recording
• 1 SATA hard disk up to 12TB
• 1 RJ45 10M/100M network interface
• 4ch POE ports
• Smart search & playback
• Support cloud upgrade

Specification

Video Input
IP Camera Input
4 Channel
Incoming
Bandwidth
40 Mbps
Outgoing
Bandwidth
40 Mbps
Video Output
HDMI Output
3840×2160,1920×1080, 1440×900, 1280×1024
VGA Output
1920×1080, 1440×900, 1280×1024
Decoding Capacity
1ch 8MP, 4ch 1080P@30fps
Dual Stream
Support
Multi-screen
Display
1/4
Recoding
 Resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
etc.
Recording Mode
Manual, Schedule (Regular, Continuous), Event
Trigger Events
Motion Detection, Video Loss, Alarm in, IVS
Playback and Backup
Sync Playback
4/1
Search Mode
Time /Date, Alarm, Picture grid, Event
Backup Mode
USB Device, Network
Storage
HDD
1 SATA Ports, up to 12TB for each HDD
Cloud Storage
Support
Interface
Audio I/O
1/1
Alarm Input
4ch
Alarm Output
1ch
USB
3 ports (USB 2.0 × 3)
Network
Interface
1 RJ-45 port (10/100 Mbps)
PoE
4 Ports (IEEE 802.3af), 32W
Network Function
HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP,
RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter,
DDNS, 802.1X, SNMP, 3G/4G, PPPoE
Remote Users
8 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF, SDK, CGI
General
Power Supply
DC48V/1.25A
Power Consumption
< 5 W (without HDD)
Operating
Conditions
-10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Humidity
Less than 90% RH
Certifications
CE/FCC
Dimensions
255 × 237 × 47.5 mm (10.04 × 9.33 × 1.87 inch)
Net Weight
0.9 kg (1.98 lb) without HDD
